Rotary Kilns, Filters, Refining, Mills

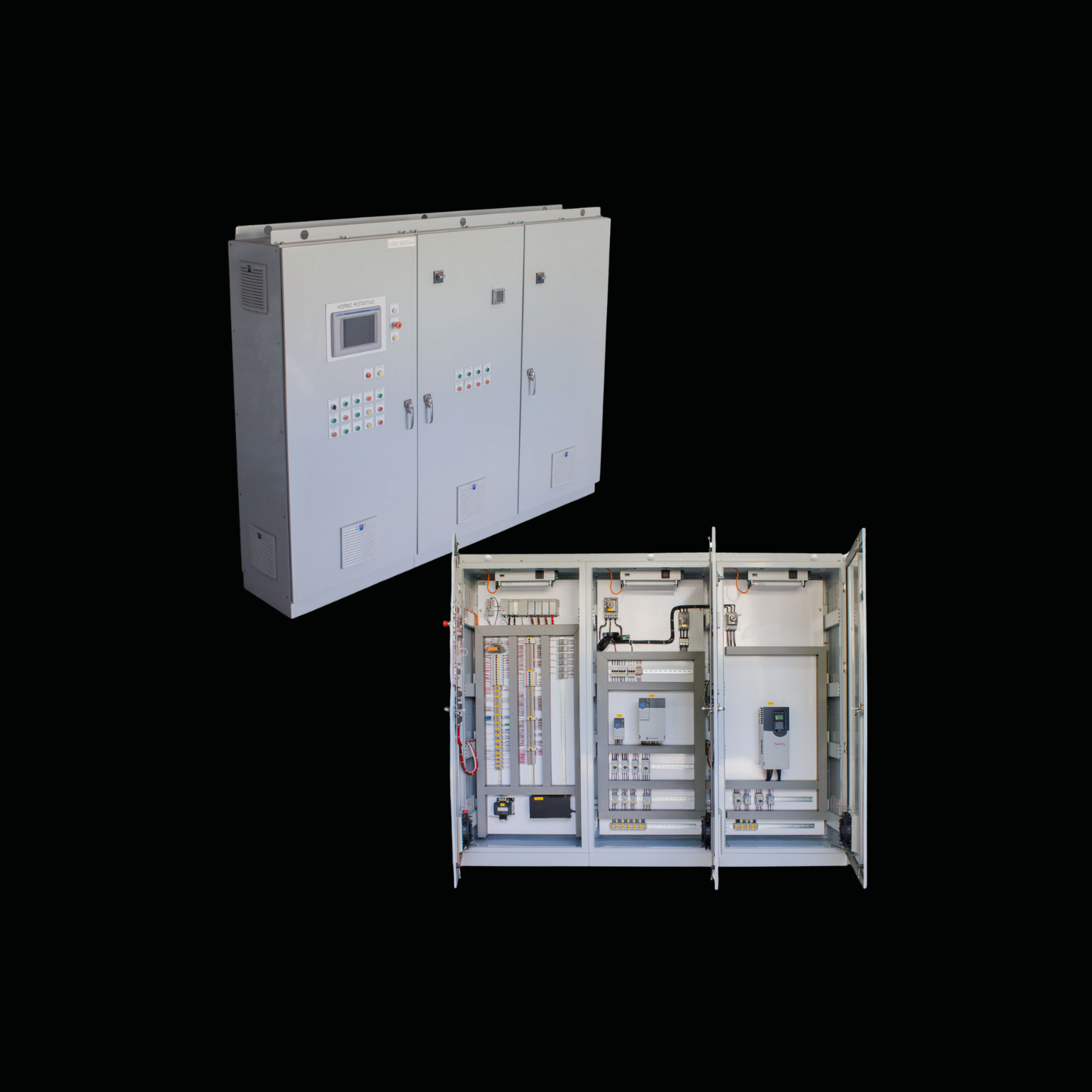

SIOS has developed and supplied control system solutions for the lead-acid battery recycling industry for over 25 years and across more than 60 projects. We provide integrated control systems for the following process areas:

  • Battery Crushing

  • Smelting Furnaces

  • Refining and Alloying

  • Dust Collectors

  • Electrolyte Treatment

We have carried out projects with numerous clients located in the following countries:

USA
Mexico
Chile
Brazil
Philippines
China
Australia
Puerto Rico
Dominican Republic
South Africa
Peru
Venezuela

The systems developed by SIOS have continuously improved through the experience gained over the years and projects in which we have participated. This expertise is reflected in our equipment, so when working with SIOS, clients benefit from the following:

KEY ADVANTAGES

  • Specialized knowledge of the recycling process

  • Equipment-specific functions to improve operation and performance

  • Commissioning with safety standards and minimal startup time

  • Distributed Control Architecture that reduces wiring and improves troubleshooting

  • Robust and safe designs for operating and maintenance personnel

  • Easy integration with SCADA systems via Ethernet connection

Below are some of the systems supplied by SIOS for various areas of the process:

CONTROL SYSTEM FOR CRUSHING AND SEPARATION

    The Battery Crushing stage, in the lead processing industry, seeks and recover the different compounds of waste batteries (lead oxide, sulfates, plastic, etc.) to then be reused in later stages.

    Our Battery Crushing system controls the operation of the main mill, the battery supply and the different pumps.



    MAIN FEATURES

    • Precision in the Speed Control of mechanical equipment
    • Engine Start/Stop Sequences and Operation Locks
    • Shredder protection by battery overcharging
    • Local and Remote Power Control System
    • Basic Production Report
    • Soft start of the crusher motor
    • Detailed Monitoring of the Operation System for operation Personnel

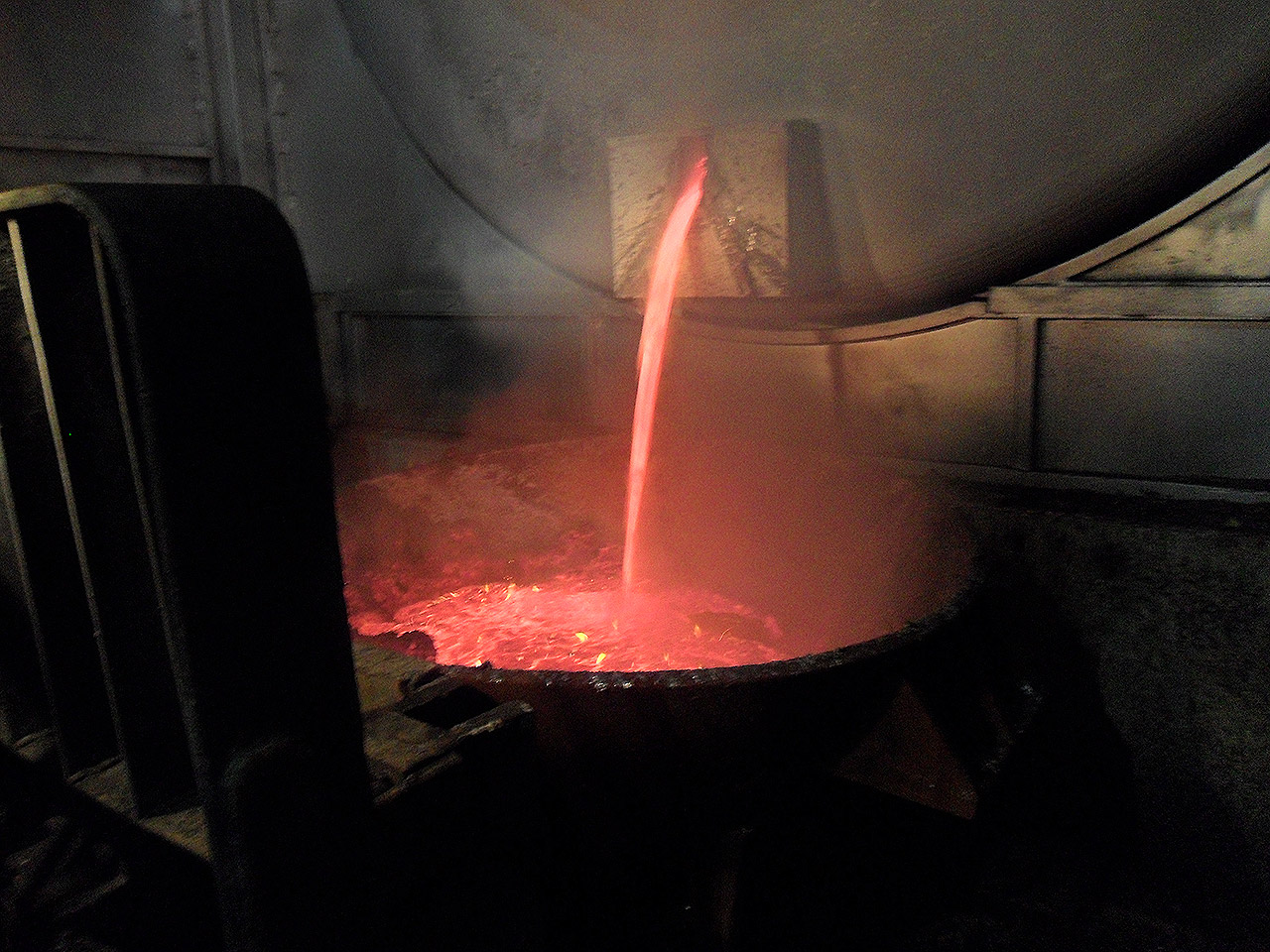

    Rotary Furnaces

    Our Control system for rotary lead furnaces allows you to operate the smelting process safely and efficiently. The system controls both the speed and direction of the rotation of the furnace, as well as the intensity and type of flame of the burner. These furnaces are powered with lead oxide and lead metal recovered from automotive and industrial batteries of the lead-acid type.



    MAIN FEATURES

    • Flame Fault Protection
    • Control of the Speed and Direction of the rotation of the furnace
    • Furnace Combustion Control
    • Use of combinations of Air and Oxygen as oxidizers
    • Burner Cooling System
    • Burner positioning
    • Furnace Rotation and Brake
    • Control Operation from the Main Board and Operation Button
    • Detailed Process Monitoring
    • Protection and Alarm Diagnostic System
    • Easy Integration to Centralized SCADA System
    • Integration with the Dust Collector System
    • Ready for integration with our IS3 Infrared Armor Temperature Scanner

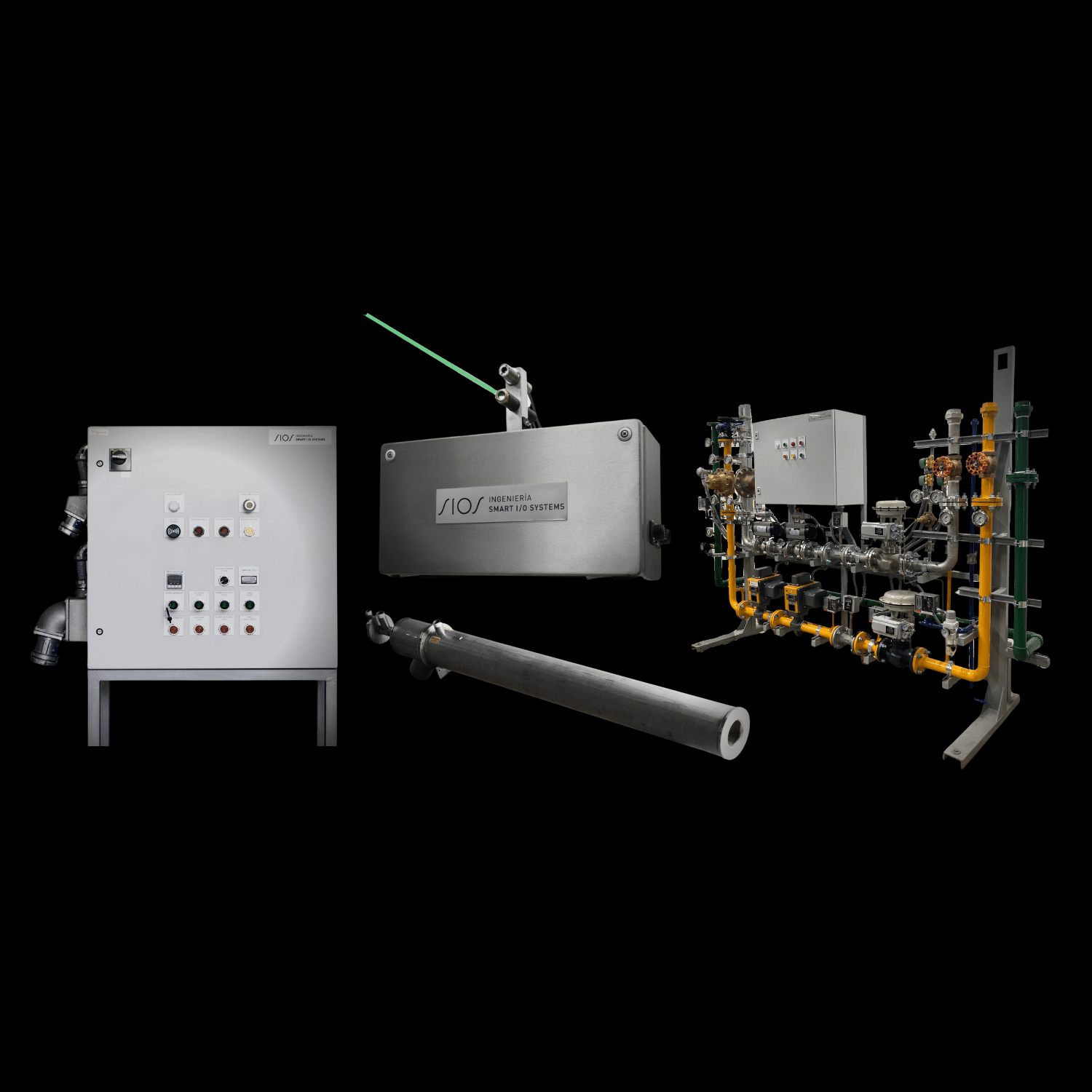

    SIOS provides Combustion Systems for Rotary Furnaces having as central components a Valve Train and Burner. Our systems are sized to deliver the required amount of BTU’s at different times of the process. The most commonly used main fuel is Natural Gas but depending on the customer and its process other fuels have been used such as the oil.



    MAIN FEATURES

    • Stainless Steel burner with cooling jacket and ignition pilot
    • Use of combinations of Air and Oxygen as oxidizers
    • Intelligent Valve Train for precise control of fuel and oxidizing flows
    • Accurate measurement of fuel and fuel flow
    • Safety and Flame Failure Protection
    • Configuration by HMI of Fuel and Oxidizer ratio tables for 4 types of flames
    • Pneumatic safety board for burner

    Combustion systems use the most new technology components to provide you with years of trouble-free operation and the following benefits:

    • Safety and Flame Failure Protection
    • Prevents the risks of mechanical damage to the burner
    • Supports Furnace Performance Optimization
    • Reduction of production costs using Enriched Air technology
    • Recent technology
    • Fast system commissioning and start-up



    Dust Collector

    The Control system for the Dust Collector regulates the extraction of the gases generated in the Lead Smelting Furnace by passing them through a filtering system. Also, the cleaning of the modules that make up the filter system is automated ant the temperature is regulated. The emissions generated are monitored to comply with current regulations.


    MAIN FEATURES

    • Emissions Monitoring
    • Different modes of operation for cleaning cycles
    • Differential Pression Monitoring to determine if filters are dirty
    • Protection for high temperature filter sleeves
    • Remote Control and Local Extraction
    • Cold Air Damper Control
    • Detailed Process Monitoring
    • Protection and Alarm Diagnostic System
    • Easy Integration to Centralized SCADA System
    • Integration with the Furnace Control System





    Refining Board

    The Lead refining process begins by entering the refining crucibles the liquid lead recovered in the smelter. There it will remain until the alloys required by the client are achieved, and finally it is pumped into the ingot until it solidifies.

    Our control system for Refining Crucibles has the following features that facilitate this process.

    MAIN FEATURES

    • Panel that integrates control and independent force for each crucible.
    • Single temperature controller with universal input
    • Ignition and burner operation
    • Flame failure protection in burner
    • Lead Agitator Control
    • Lead Drum Speed Control
    • Quick connector for Agitator and Lead Pump
    • Process Time monitoring via digital timer
    • Easy integration with SCADA systems via Ethernet connection





    MAIN ADVANTAGES

    MAXIMIZES EFFICIENCY

    SOFT START OF SHREDDER MOTORCYCLES

    BATTERY OVERFEED PROTECTION

    MINIMIZES DOWNTIME

    QUICK START-UP

    SAFETY

    DISTRIBUTED ARCHITECTURE
