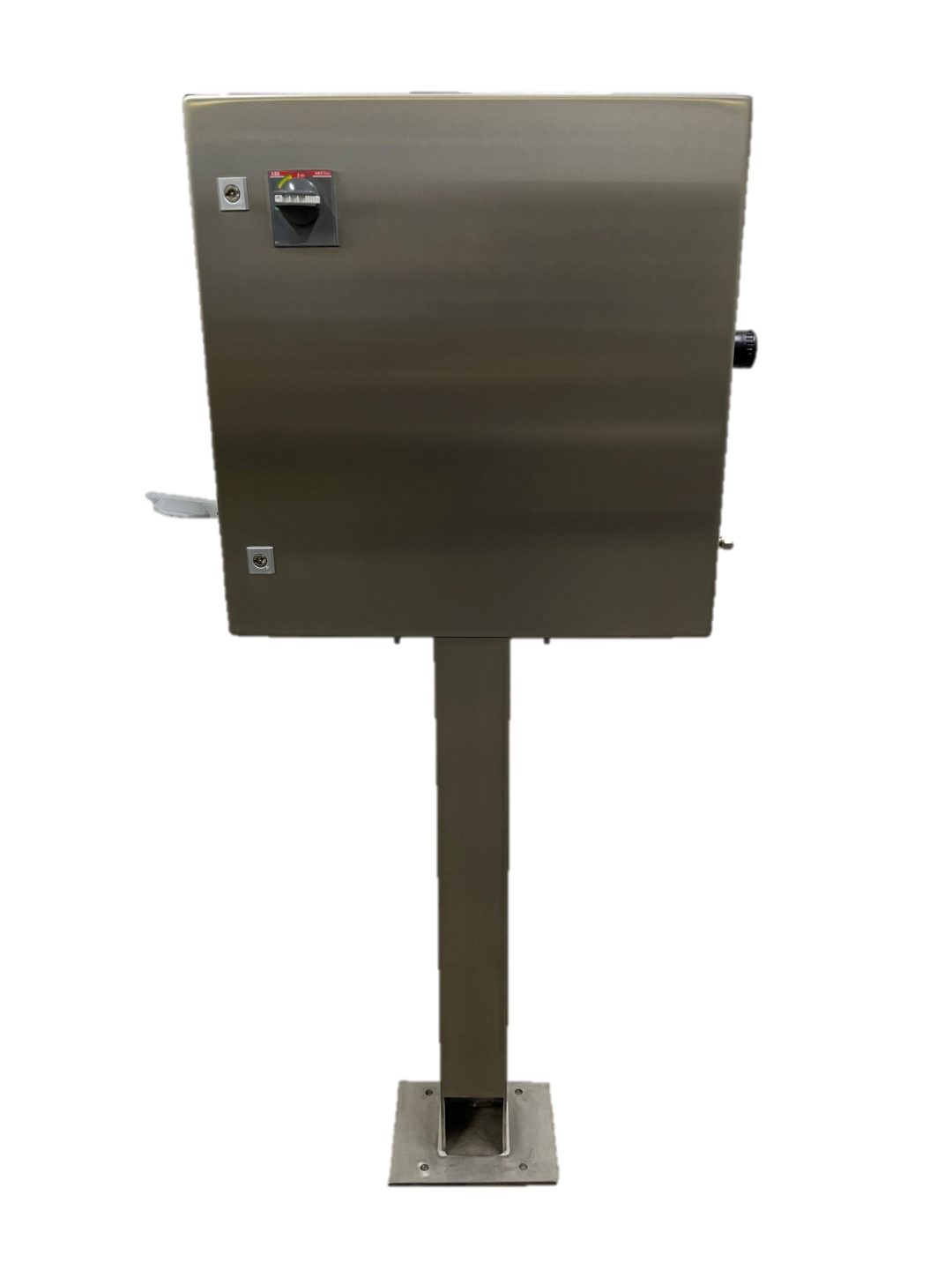

The TTV control panel is designed to monitor and control stationary CO₂ tanks, specifically optimized for vertical configurations. It can also be adapted to horizontal tanks, provided that the level measurement is done via differential pressure rather than by weight.
Operational Capabilities:
The panel manages tank pressure automatically by controlling components such as:
- Liquid/gas phase valves
- Cooling compressors
- Pressure build-up valves
- Heaters (if available in the installation)
Local alarms are triggered when parameters fall outside established thresholds. These alarms, along with operational data, are displayed on a built-in HMI screen. Operators can also use the interface to set operational and alarm limits directly on-site.
Main Features:
- Automated Tank Pressure Control
- On-site adjustable operational parameters
- Weather-resistant stainless steel panel (IP65 rated)
- Supports both vertical and horizontal tanks (with pressure-based level monitoring)
- Visual alerts and intuitive configuration via touchscreen interface
P: This system enhances operational safety and reliability in environments where CO₂ storage is critical, such as beverage production, industrial refrigeration, or food preservation.
